SAF48減速機詳細信息

prevnext

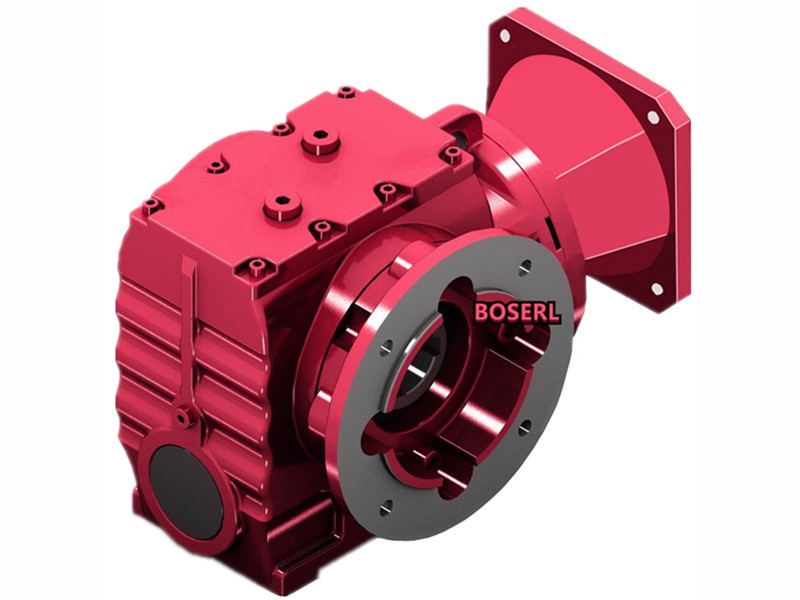

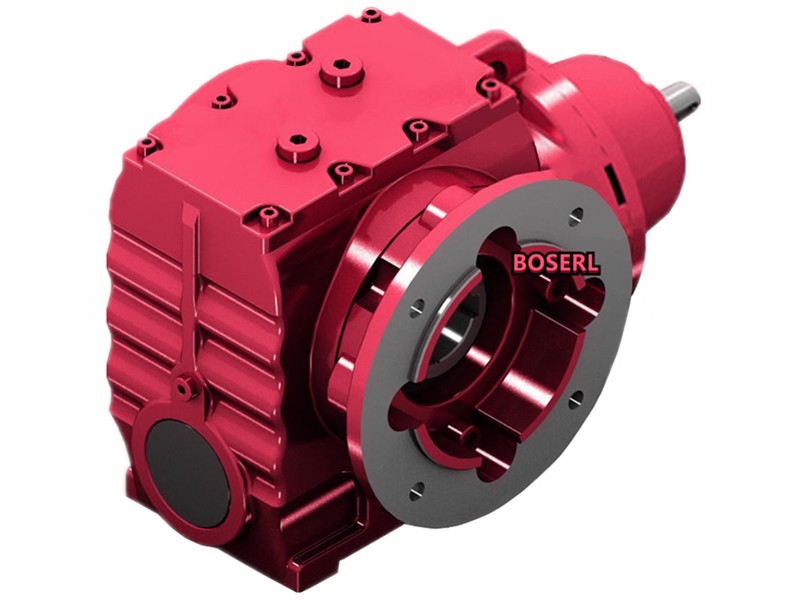

SAF48減速機

訂購熱線：13360667204
  1. 詳細信息

SAF48減速機傳動比計算：齒輪減速馬達

升降機參數：齒輪直徑180，承重1500斤，一分鐘上升50米

50米÷（0.18滾筒直徑X3.14）=88.46轉每分鐘

1500斤換算成扭矩=1470N.m

1470N.m×0.09滾筒半徑=132.3N.m

電機轉數1400÷輸出轉數88.46=15.83比

132.3N.m輸出扭矩÷15.83比=8.36N.m電機扭矩

8.36N.m電機扭矩換算成功率1.33KW以上

上下提升的升降機，我們通常建議用S系列自鎖減速機加剎車電機

對應的SAF48減速機選型參數：

型號：SAF48-BVPEJ1.5KW

減速比：14.24

輸出轉數：100轉每分鐘

輸出扭矩：127N.m

安全系數：0.85

SAF48減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機渦輪渦桿減速機


SAF48斜齒輪渦輪減速機型號：



SAF48系列減速機參數大全：自鎖減速機

SAF48減速機配0.12KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S47Y0.12KW0.12KW6.90rpm95N.m1.80
S47Y0.12KW0.12KW7.50rpm89N.m1.90
S47Y0.12KW0.12KW8.70rpm77N.m2.20
S47Y0.12KW0.12KW10.0rpm68N.m2.50
S47Y0.12KW0.12KW11.0rpm64N.m2.60
S47Y0.12KW0.12KW12.0rpm57N.m3.00

SAF48減速機配0.18KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S47Y0.18KW0.18KW6.60rpm149N.m1.15
S47Y0.18KW0.18KW7.10rpm138N.m1.25
S47Y0.18KW0.18KW8.40rpm121N.m1.40
S47Y0.18KW0.18KW9.60rpm106N.m1.60
S47Y0.18KW0.18KW10.0rpm100N.m1.65
S47Y0.18KW0.18KW12.0rpm88N.m1.90
S47Y0.18KW0.18KW14.0rpm77N.m2.20
S47Y0.18KW0.18KW16.0rpm69N.m2.40
S47Y0.18KW0.18KW18.0rpm60N.m2.80
S47Y0.18KW0.18KW19.0rpm69N.m2.20

SAF48減速機配0.25KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S47Y0.25KW0.25KW6.50rpm205N.m0.80
S47Y0.25KW0.25KW7.00rpm194N.m0.85
S47Y0.25KW0.25KW8.20rpm170N.m1.00
S47Y0.25KW0.25KW99.50rpm150N.m1.10
S47Y0.25KW0.25KW10.0rpm141N.m1.20
S47Y0.25KW0.25KW12.0rpm124N.m1.35
S47Y0.25KW0.25KW14.0rpm108N.m1.55
S47Y0.25KW0.25KW15.0rpm98N.m1.70
S47Y0.25KW0.25KW18.0rpm85N.m1.95
S47Y0.25KW0.25KW19.0rpm97N.m1.60
S47Y0.25KW0.25KW19.0rpm80N.m2.10
S47Y0.25KW0.25KW20.0rpm90N.m1.70
S47Y0.25KW0.25KW24.0rpm78N.m2.00
S47Y0.25KW0.25KW27.0rpm68N.m2.30

SAF48減速機配0.37KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S47Y0.37KW0.37KW10.0rpm210N.m0.80
S47Y0.37KW0.37KW11.0rpm198N.m0.85
S47Y0.37KW0.37KW12.0rpm175N.m0.95
S47Y0.37KW0.37KW15.0rpm151N.m1.10
S47Y0.37KW0.37KW16.0rpm137N.m1.20
S47Y0.37KW0.37KW19.0rpm119N.m1.40
S47Y0.37KW0.37KW20.0rpm136N.m1.15
S47Y0.37KW0.37KW21.0rpm112N.m1.50
S47Y0.37KW0.37KW22.0rpm126N.m1.25
S47Y0.37KW0.37KW25.0rpm109N.m1.40
S47Y0.37KW0.37KW29.0rpm96N.m1.60
S47Y0.37KW0.37KW31.0rpm90N.m1.75
S47Y0.37KW0.37KW36.0rpm78N.m2.00
S47Y0.37KW0.37KW42.0rpm67N.m2.30
S47Y0.37KW0.37KW48.0rpm60N.m2.60
S47Y0.37KW0.37KW56.0rpm52N.m3.00
S47Y0.37KW0.37KW59.0rpm49N.m3.10
S47Y0.37KW0.37KW68.0rpm46N.m2.40
S47Y0.37KW0.37KW78.0rpm40N.m2.80
S47Y0.37KW0.37KW84.0rpm37N.m3.00

SAF48減速機配0.55KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S47Y0.55KW0.55KW16.0rpm200N.m0.80
S47Y0.55KW0.55KW19.0rpm177N.m0.95
S47Y0.55KW0.55KW21.0rpm167N.m1.00
S47Y0.55KW0.55KW25.0rpm162N.m0.95
S47Y0.55KW0.55KW29.0rpm142N.m1.10
S47Y0.55KW0.55KW31.0rpm133N.m1.15
S47Y0.55KW0.55KW36.0rpm116N.m1.35
S47Y0.55KW0.55KW42.0rpm100N.m1.55
S47Y0.55KW0.55KW48.0rpm90N.m1.75
S47Y0.55KW0.55KW56.0rpm77N.m2.00
S47Y0.55KW0.55KW59.0rpm73N.m2.10
S47Y0.55KW0.55KW68.0rpm68N.m1.60
S47Y0.55KW0.55KW78.0rpm59N.m1.85
S47Y0.55KW0.55KW84.0rpm56N.m2.00
S47Y0.55KW0.55KW97.0rpm48N.m2.30
S47Y0.55KW0.55KW114rpm41N.m2.60
S47Y0.55KW0.55KW128rpm37N.m3.00
S47Y0.55KW0.55KW150rpm32N.m3.40

SAF48減速機配0.75KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S47Y0.75KW0.75KW30.0rpm187N.m0.85
S47Y0.75KW0.75KW32.0rpm175N.m0.90
S47Y0.75KW0.75KW38.0rpm153N.m1.00
S47Y0.75KW0.75KW44.0rpm131N.m1.20
S47Y0.75KW0.75KW49.0rpm118N.m1.30
S47Y0.75KW0.75KW58.0rpm102N.m1.55
S47Y0.75KW0.75KW62.0rpm96N.m1.60
S47Y0.75KW0.75KW71.0rpm89N.m1.25
S47Y0.75KW0.75KW81.0rpm78N.m1.40
S47Y0.75KW0.75KW87.0rpm73N.m1.50
S47Y0.75KW0.75KW101rpm63N.m1.75
S47Y0.75KW0.75KW119rpm54N.m2.00
S47Y0.75KW0.75KW133rpm48N.m2.20
S47Y0.75KW0.75KW156rpm42N.m2.60
S47Y0.75KW0.75KW166rpm39N.m2.80
S47Y0.75KW0.75KW197rpm33N.m3.10

SAF48減速機配1.1KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S47Y1.1KW1.1KW49.0rpm175N.m0.90
S47Y1.1KW1.1KW57.0rpm151N.m1.05
S47Y1.1KW1.1KW61.0rpm142N.m1.05
S47Y1.1KW1.1KW73.0rpm120N.m1.20
S47Y1.1KW1.1KW81.0rpm115N.m0.95
S47Y1.1KW1.1KW86.0rpm108N.m1.00
S47Y1.1KW1.1KW100rpm94N.m1.15
S47Y1.1KW1.1KW117rpm80N.m1.35
S47Y1.1KW1.1KW131rpm72N.m1.50
S47Y1.1KW1.1KW154rpm62N.m1.75
S47Y1.1KW1.1KW164rpm58N.m1.90
S47Y1.1KW1.1KW195rpm49N.m2.10

SAF48減速機配1.5KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S47Y1.5KW1.5KW100rpm127N.m0.85
S47Y1.5KW1.5KW118rpm108N.m1.00
S47Y1.5KW1.5KW132rpm97N.m1.10
S47Y1.5KW1.5KW155rpm83N.m1.30
S47Y1.5KW1.5KW166rpm78N.m1.40
S47Y1.5KW1.5KW196rpm66N.m1.55

SAF48減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：S48減速機

關鍵詞:GSAF系列減速機配電機一體式_伺服電機渦輪渦桿減速機_立式蝸桿減速機_立式蝸輪蝸桿減速機_SAF系列減速機_SAF系列減速器_伺服電機渦輪渦桿減速器_伺服渦輪渦桿減速機_立式蝸輪減速機

SAF系列蝸輪蝸桿減速機型號：SAF38減速機,SAF48減速機,SAF58減速機,SAF68減速機,SAF78減速機,SAF88減速機,SAF98齒輪減速馬達

SAF系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間


如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求



標簽:   SAF48減速機 SAF47斜齒輪渦輪減速機 SAF47系列減速機 SAF47減速機傳動比 SAF47減速機選型參數 SAF47減速機CAD三維圖

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SAF48減速機CAD三維圖紙下載 點擊下載
SAF48減速機選型參數下載 點擊下載
