R98減速電機詳細信息

prevnext

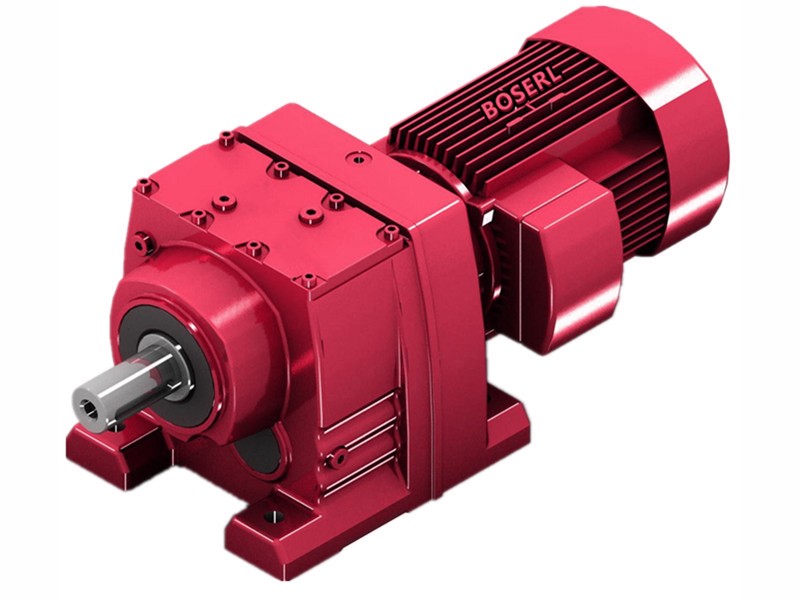

R98減速電機

訂購熱線：13360667204
  1. 詳細信息

R98減速電機功率計算公式：齒輪減速馬達

軌道車參數：輥輪直徑200，承重4.5噸，駛行一分鐘10米

10米÷（0.2輥輪直徑×3.14）=15.9轉每分鐘

4.5噸換算成N=45000N

45000×0.1輥輪半徑×0.3橡膠輪水泥路的摩擦系數=270N.m

通常確保萬無一失，我們會把輸出扭矩放大兩倍270×2=540N.m

電機轉數1400÷輸出轉數15.9=88比

540N.m輸出扭矩÷88比=6.1N.m電機扭矩

6.1N.m電機扭矩換算成功率1KW以上

對應的R98減速機型號參數：

型號：R98-B1.5KW

減速比：92.48

輸出轉數：15轉每分鐘

輸出扭矩：920N.m

安全系數：3.20

R98減速機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機


R98斜齒輪硬齒面減速機型號：



R98減速電機型號參數：同軸斜齒輪減速電機

R98減速機配0.55KW電機參數

型號功率轉數扭矩安全系數
R97F-Y0.55KW0.55kw4.8rpm1100N.m2.7
R97F-Y0.55KW0.55kw5.4rpm970N.m3.1
R97F-Y0.55KW0.55kw5.7rpm910N.m3.3
R97F-Y0.55KW0.55kw6.4rpm820N.m3.6

R98減速機配0.75KW電機參數

型號功率轉數扭矩安全系數
R97F-Y0.75KW0.75kw4.9rpm1470N.m2
R97F-Y0.75KW0.75kw5.5rpm1290N.m2.3
R97F-Y0.75KW0.75kw5.8rpm1220N.m2.4
R97F-Y0.75KW0.75kw6.5rpm1090N.m2.7
R97F-Y0.75KW0.75kw7.6rpm940N.m3.2
R97F-Y0.75KW0.75kw8.3rpm860N.m3.5

R98減速機配1.1KW電機參數

型號功率轉數扭矩安全系數
R97F-Y1.1KW1.1kw5.5rpm1900N.m1.55
R97F-Y1.1KW1.1kw5.8rpm1790N.m1.65
R97F-Y1.1KW1.1kw6.5rpm1610N.m1.85
R97F-Y1.1KW1.1kw7.5rpm1380N.m2.2
R97F-Y1.1KW1.1kw8.2rpm1260N.m2.4
R97F-Y1.1KW1.1kw9.3rpm1120N.m2.7
R97F-Y1.1KW1.1kw11rpm940N.m3.2
R97F-Y1.1KW1.1kw12rpm860N.m3.5

R98減速機配1.5KW電機參數

型號功率轉數扭矩安全系數
R97F-Y1.5KW1.5kw5.5rpm2610N.m1.15
R97F-Y1.5KW1.5kw5.8rpm2460N.m1.2
R97F-Y1.5KW1.5kw6.5rpm2210N.m1.35
R97F-Y1.5KW1.5kw7.5rpm1900N.m1.55
R97F-Y1.5KW1.5kw8.2rpm1730N.m1.7
R97F-Y1.5KW1.5kw9.3rpm1540N.m1.95
R97F-Y1.5KW1.5kw11rpm1290N.m2.3
R97F-Y1.5KW1.5kw12rpm1190N.m2.5
R97F-Y1.5KW1.5kw14rpm1050N.m2.8
R97F-Y1.5KW1.5kw15rpm940N.m3.2

R98減速機配2.2KW電機參數

型號功率轉數扭矩安全系數
R97F-Y2.2KW2.2kw6.5rpm3240N.m0.9
R97F-Y2.2KW2.2kw7.5rpm2790N.m1.05
R97F-Y2.2KW2.2kw8.2rpm2550N.m1.2
R97F-Y2.2KW2.2kw9.3rpm2260N.m1.35
R97F-Y2.2KW2.2kw11rpm1900N.m1.6
R97F-Y2.2KW2.2kw12rpm1740N.m1.7
R97F-Y2.2KW2.2kw14rpm1550N.m1.95
R97F-Y2.2KW2.2kw15rpm1380N.m2.2
R97F-Y2.2KW2.2kw17rpm1240N.m2.4
R97F-Y2.2KW2.2kw19rpm1080N.m2.8
R97F-Y2.2KW2.2kw21rpm970N.m3.1
R97F-Y2.2KW2.2kw23rpm890N.m3.3
R97F-Y2.2KW2.2kw26rpm795N.m3.8
R97F-Y2.2KW2.2kw29rpm710N.m4.2

R98減速機配3KW電機參數

型號功率轉數扭矩安全系數
R97F-Y3KW3kw9.3rpm3080N.m0.95
R97F-Y3KW3kw11rpm2590N.m1.15
R97F-Y3KW3kw12rpm2380N.m1.25
R97F-Y3KW3kw14rpm2110N.m1.4
R97F-Y3KW3kw15rpm1890N.m1.6
R97F-Y3KW3kw17rpm1700N.m1.75
R97F-Y3KW3kw19rpm1470N.m2
R97F-Y3KW3kw21rpm1330N.m2.2
R97F-Y3KW3kw23rpm1220N.m2.4
R97F-Y3KW3kw26rpm1080N.m2.8
R97F-Y3KW3kw29rpm970N.m3.1
R97F-Y3KW3kw33rpm870N.m3.4
R97F-Y3KW3kw38rpm755N.m4
R97F-Y3KW3kw42rpm680N.m4.2

R98減速機配4KW電機參數

型號功率轉數扭矩安全系數
R97F-Y4KW4kw12rpm3100N.m0.95
R97F-Y4KW4kw14rpm2750N.m1.1
R97F-Y4KW4kw16rpm2460N.m1.25
R97F-Y4KW4kw17rpm2210N.m1.35
R97F-Y4KW4kw20rpm1920N.m1.55
R97F-Y4KW4kw22rpm1740N.m1.75
R97F-Y4KW4kw24rpm1600N.m1.9
R97F-Y4KW4kw27rpm1420N.m2.1
R97F-Y4KW4kw30rpm1270N.m2.4
R97F-Y4KW4kw34rpm1140N.m2.6
R97F-Y4KW4kw39rpm990N.m3.1
R97F-Y4KW4kw43rpm880N.m3.3

R98減速機配5.5KW電機參數

型號功率轉數扭矩安全系數
R97F-Y5.5KW5.5kw17rpm3020N.m1
R97F-Y5.5KW5.5kw20rpm2620N.m1.15
R97F-Y5.5KW5.5kw22rpm2370N.m1.25
R97F-Y5.5KW5.5kw24rpm2170N.m1.4
R97F-Y5.5KW5.5kw27rpm1930N.m1.55
R97F-Y5.5KW5.5kw30rpm1720N.m1.75
R97F-Y5.5KW5.5kw34rpm1550N.m1.95
R97F-Y5.5KW5.5kw39rpm1340N.m2.2
R97F-Y5.5KW5.5kw43rpm1200N.m2.4
R97F-Y5.5KW5.5kw52rpm1000N.m2.7
R97F-Y5.5KW5.5kw45rpm1160N.m2.7
R97F-Y5.5KW5.5kw53rpm980N.m2.6
R97F-Y5.5KW5.5kw58rpm900N.m3.1
R97F-Y5.5KW5.5kw65rpm810N.m3.3
R97F-Y5.5KW5.5kw72rpm730N.m3.6
R97F-Y5.5KW5.5kw79rpm660N.m3.8
R97F-Y5.5KW5.5kw89rpm585N.m4.1

R98減速機配7.5KW電機參數

型號功率轉數扭矩安全系數
R97Y7.5KW7.5kw24rpm2970N.m1
R97Y7.5KW7.5kw27rpm2630N.m1.15
R97Y7.5KW7.5kw30rpm2350N.m1.25
R97Y7.5KW7.5kw34rpm2120N.m1.4
R97Y7.5KW7.5kw39rpm1840N.m1.65
R97Y7.5KW7.5kw43rpm1640N.m1.75
R97Y7.5KW7.5kw52rpm1360N.m1.95
R97Y7.5KW7.5kw45rpm1580N.m1.6
R97Y7.5KW7.5kw53rpm1340N.m1.9
R97Y7.5KW7.5kw58rpm1240N.m2.3
R97Y7.5KW7.5kw65rpm1100N.m2.4
R97Y7.5KW7.5kw72rpm990N.m2.6
R97Y7.5KW7.5kw79rpm900N.m2.8

R98減速機配11KW電機參數

型號功率轉數扭矩安全系數
R97F-Y11KW11kw34rpm3070N.m0.95
R97F-Y11KW11kw39rpm2670N.m1.1
R97F-Y11KW11kw44rpm2390N.m1.2
R97F-Y11KW11kw53rpm1980N.m1.35
R97F-Y11KW11kw58rpm1800N.m1.55
R97F-Y11KW11kw65rpm1600N.m1.7
R97F-Y11KW11kw72rpm1440N.m1.8
R97F-Y11KW11kw80rpm1310N.m1.9
R97F-Y11KW11kw90rpm1160N.m2.1
R97F-Y11KW11kw100rpm1050N.m2.2
R97F-Y11KW11kw118rpm890N.m2.5
R97F-Y11KW11kw135rpm775N.m2.7
R97F-Y11KW11kw157rpm665N.m3
R97F-Y11KW11kw174rpm600N.m3.4
R97F-Y11KW11kw205rpm510N.m3.9
R97F-Y11KW11kw235rpm445N.m4.2

R98減速機配15KW電機參數

型號功率轉數扭矩安全系數
R97F-Y15KW15kw53rpm2710N.m1
R97F-Y15KW15kw58rpm2460N.m1.15
R97F-Y15KW15kw65rpm2200N.m1.25
R97F-Y15KW15kw72rpm1980N.m1.35
R97F-Y15KW15kw80rpm1790N.m1.4
R97F-Y15KW15kw90rpm1590N.m1.6
R97F-Y15KW15kw100rpm1430N.m1.6
R97F-Y15KW15kw118rpm1220N.m1.8
R97F-Y15KW15kw135rpm1060N.m1.95
R97F-Y15KW15kw157rpm910N.m2.2
R97F-Y15KW15kw174rpm820N.m2.5
R97F-Y15KW15kw205rpm700N.m2.9
R97F-Y15KW15kw235rpm610N.m3.1

R98減速機配18.5KW電機參數

型號功率轉數扭矩安全系數
R97F-Y18.5KW18.5kw72rpm2430N.m1.05
R97F-Y18.5KW18.5kw80rpm2200N.m1.15
R97F-Y18.5KW18.5kw90rpm1950N.m1.25
R97F-Y18.5KW18.5kw100rpm1760N.m1.3
R97F-Y18.5KW18.5kw118rpm1490N.m1.45
R97F-Y18.5KW18.5kw135rpm1310N.m1.6
R97F-Y18.5KW18.5kw157rpm1120N.m1.8
R97F-Y18.5KW18.5kw174rpm1010N.m2
R97F-Y18.5KW18.5kw205rpm860N.m2.3
R97F-Y18.5KW18.5kw235rpm750N.m2.5
R97F-Y18.5KW18.5kw281rpm625N.m2.8
R97F-Y18.5KW18.5kw324rpm540N.m3

R98減速機配22KW電機參數

型號功率轉數扭矩安全系數
R97F-Y22KW22kw72rpm2890N.m0.9
R97F-Y22KW22kw80rpm2620N.m0.95
R97F-Y22KW22kw90rpm2320N.m1.05
R97F-Y22KW22kw100rpm2100N.m1.1
R97F-Y22KW22kw118rpm1780N.m1.25
R97F-Y22KW22kw135rpm1550N.m1.35
R97F-Y22KW22kw157rpm1330N.m1.5
R97F-Y22KW22kw174rpm1200N.m1.7
R97F-Y22KW22kw205rpm1020N.m1.95
R97F-Y22KW22kw235rpm890N.m2.1
R97F-Y22KW22kw281rpm745N.m2.4
R97F-Y22KW22kw324rpm645N.m2.5

R98減速機配30KW電機參數

型號功率轉數扭矩安全系數
R97F-Y30KW30kw101rpm2840N.m0.8
R97F-Y30KW30kw119rpm2410N.m0.9
R97F-Y30KW30kw136rpm2100N.m1
R97F-Y30KW30kw159rpm1800N.m1.15
R97F-Y30KW30kw176rpm1630N.m1.25
R97F-Y30KW30kw207rpm1380N.m1.45
R97F-Y30KW30kw237rpm1210N.m1.55
R97F-Y30KW30kw284rpm1010N.m1.75
R97F-Y30KW30kw328rpm870N.m1.85

R98減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：R98減速機

關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機

R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機

R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


標簽:   R98減速電機 R97斜齒輪硬齒面減速機 R97減速機功率 R97減速機基座尺寸 R97減速機模型 R97減速機型號參數
