KA38減速電機詳細信息

prevnext

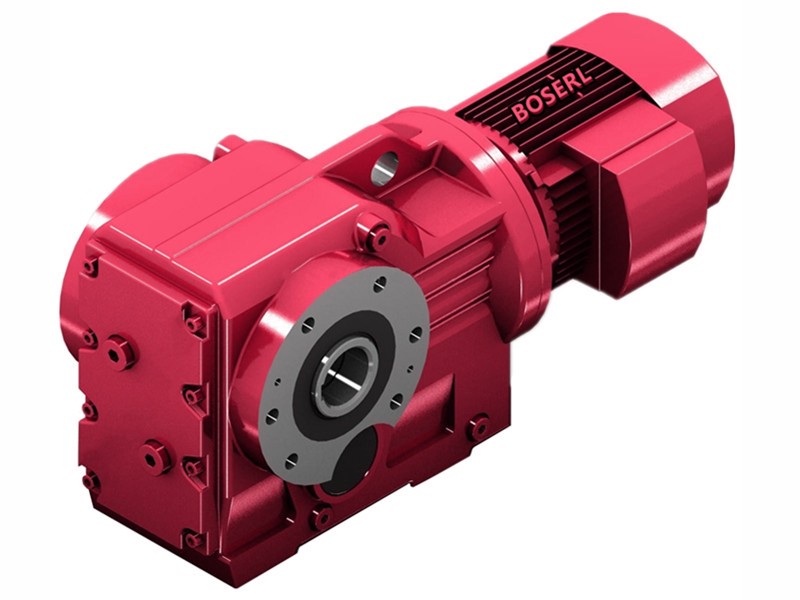

KA38減速電機

訂購熱線：13360667204
  1. 詳細信息

KA38減速電機選型計算：齒輪減速馬達

混泥土攪拌罐參數：攪拌罐負載140公斤，攪動154圈/每分鐘，攪動齒輪直徑46

電機轉數1400÷154圈（輸出轉速）=減速比9.09

攪拌140公斤混泥土=1372N

1372N×0.023攪動齒輪半徑=31.556×3攪拌泥狀物料扭矩放大三倍=94.668N.m

94.668N.m÷9.09減速比=10.41N.m電機扭矩

10.41N.m電機扭矩?fù)Q算成功率1.65KW以上

對應的KA38減速機選型參數：

型號：KA38-BVP2.2KW

減速比：8.91

輸出轉數：160轉每分鐘

輸出扭矩：131N.m

安全系數：1.2

KA38減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）空心軸減速機

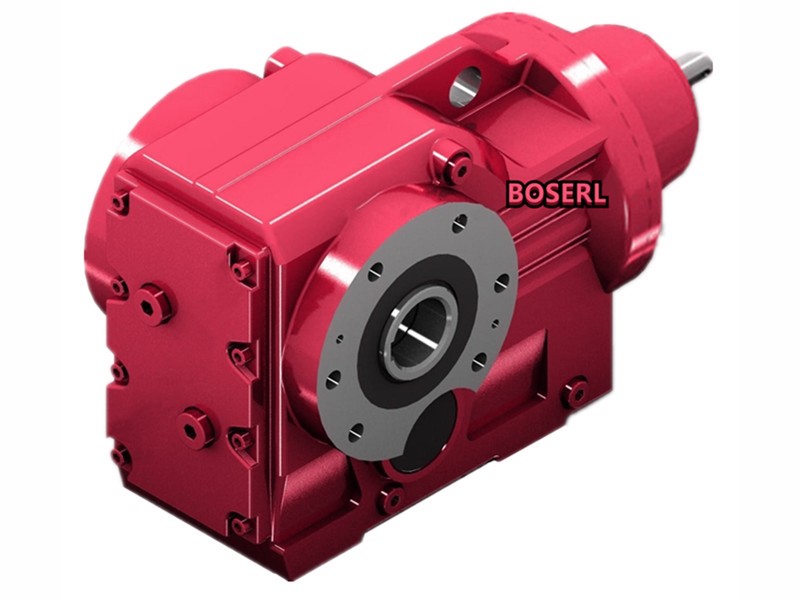

KA38斜齒輪錐齒輪減速機型號：



KA38減速電機型號參數：直角減速機

KA38減速機配0.12KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y0.12KW0.12kw13rpm88N.m2.3
K37Y0.12KW0.12kw14rpm81N.m2.5
K37Y0.12KW0.12kw16rpm70N.m2.9
K37Y0.12KW0.12kw19rpm60N.m3.3
K37Y0.12KW0.12kw20rpm56N.m3.6
K37Y0.12KW0.12kw24rpm49N.m4.1
K37Y0.12KW0.12kw28rpm41N.m4.8
K37Y0.12KW0.12kw31rpm37N.m5.4
K37Y0.12KW0.12kw36rpm32N.m6.4
K37Y0.12KW0.12kw39rpm30N.m6.8
K37Y0.12KW0.12kw46rpm25N.m8
K37Y0.12KW0.12kw48rpm24N.m8.4
K37Y0.12KW0.12kw55rpm21N.m9.6
K37Y0.12KW0.12kw59rpm19N.m10
K37Y0.12KW0.12kw68rpm17N.m11
K37Y0.12KW0.12kw80rpm14N.m13
K37Y0.12KW0.12kw90rpm13N.m14
K37Y0.12KW0.12kw105rpm11N.m15
K37Y0.12KW0.12kw114rpm10N.m16

KA38減速機配0.18KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y0.18KW0.18kw12rpm138N.m1.45
K37Y0.18KW0.18kw14rpm127N.m1.55
K37Y0.18KW0.18kw16rpm108N.m1.85
K37Y0.18KW0.18kw18rpm94N.m2.1
K37Y0.18KW0.18kw19rpm88N.m2.3
K37Y0.18KW0.18kw23rpm76N.m2.6
K37Y0.18KW0.18kw27rpm65N.m3.1
K37Y0.18KW0.18kw30rpm58N.m3.4
K37Y0.18KW0.18kw35rpm49N.m4
K37Y0.18KW0.18kw37rpm46N.m4.3
K37Y0.18KW0.18kw44rpm39N.m5.1
K37Y0.18KW0.18kw46rpm38N.m5.3
K37Y0.18KW0.18kw53rpm32N.m6.2
K37Y0.18KW0.18kw57rpm30N.m6.4
K37Y0.18KW0.18kw65rpm26N.m7
K37Y0.18KW0.18kw77rpm22N.m8.1
K37Y0.18KW0.18kw86rpm20N.m8.8
K37Y0.18KW0.18kw101rpm17N.m9.7
K37Y0.18KW0.18kw109rpm16N.m10
K37Y0.18KW0.18kw126rpm14N.m12
K37Y0.18KW0.18kw148rpm12N.m14
K37Y0.18KW0.18kw166rpm10N.m15

KA38減速機配0.25KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y0.25KW0.25kw12rpm195N.m1
K37Y0.25KW0.25kw13rpm180N.m1.1
K37Y0.25KW0.25kw16rpm154N.m1.3
K37Y0.25KW0.25kw18rpm133N.m1.5
K37Y0.25KW0.25kw19rpm124N.m1.6
K37Y0.25KW0.25kw22rpm108N.m1.85
K37Y0.25KW0.25kw26rpm91N.m2.2
K37Y0.25KW0.25kw29rpm82N.m2.4
K37Y0.25KW0.25kw34rpm70N.m2.9
K37Y0.25KW0.25kw37rpm65N.m3.1
K37Y0.25KW0.25kw43rpm55N.m3.6
K37Y0.25KW0.25kw45rpm53N.m3.8
K37Y0.25KW0.25kw52rpm46N.m4.4
K37Y0.25KW0.25kw56rpm43N.m4.6
K37Y0.25KW0.25kw64rpm37N.m5
K37Y0.25KW0.25kw76rpm32N.m5.7
K37Y0.25KW0.25kw85rpm28N.m6.2
K37Y0.25KW0.25kw99rpm24N.m6.9
K37Y0.25KW0.25kw107rpm22N.m7.2
K37Y0.25KW0.25kw124rpm19N.m8.3
K37Y0.25KW0.25kw146rpm16N.m9.8
K37Y0.25KW0.25kw163rpm15N.m11
K37Y0.25KW0.25kw191rpm12N.m12
K37Y0.25KW0.25kw204rpm12N.m12

KA38減速機配0.37KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y0.37KW0.37kw14rpm250N.m0.8
K37Y0.37KW0.37kw16rpm210N.m0.95
K37Y0.37KW0.37kw19rpm186N.m1.1
K37Y0.37KW0.37kw20rpm174N.m1.15
K37Y0.37KW0.37kw24rpm150N.m1.35
K37Y0.37KW0.37kw28rpm128N.m1.55
K37Y0.37KW0.37kw31rpm114N.m1.75
K37Y0.37KW0.37kw36rpm97N.m2.1
K37Y0.37KW0.37kw39rpm91N.m2.2
K37Y0.37KW0.37kw46rpm77N.m2.6
K37Y0.37KW0.37kw48rpm74N.m2.7
K37Y0.37KW0.37kw55rpm64N.m3.1
K37Y0.37KW0.37kw59rpm60N.m3.3
K37Y0.37KW0.37kw68rpm52N.m3.6
K37Y0.37KW0.37kw80rpm44N.m4.1
K37Y0.37KW0.37kw90rpm39N.m4.5
K37Y0.37KW0.37kw105rpm34N.m4.9
K37Y0.37KW0.37kw114rpm31N.m5.1
K37Y0.37KW0.37kw132rpm27N.m6
K37Y0.37KW0.37kw155rpm23N.m7
K37Y0.37KW0.37kw173rpm20N.m7.6
K37Y0.37KW0.37kw203rpm17N.m8.6
K37Y0.37KW0.37kw217rpm16N.m8.9
K37Y0.37KW0.37kw257rpm14N.m10

KA38減速機配0.55KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y0.55KW0.55kw24rpm220N.m0.9
K37Y0.55KW0.55kw28rpm190N.m1.05
K37Y0.55KW0.55kw31rpm169N.m1.2
K37Y0.55KW0.55kw36rpm144N.m1.4
K37Y0.55KW0.55kw39rpm135N.m1.5
K37Y0.55KW0.55kw46rpm114N.m1.75
K37Y0.55KW0.55kw48rpm110N.m1.8
K37Y0.55KW0.55kw55rpm95N.m2.1
K37Y0.55KW0.55kw59rpm89N.m2.2
K37Y0.55KW0.55kw68rpm77N.m2.4
K37Y0.55KW0.55kw80rpm65N.m2.8
K37Y0.55KW0.55kw90rpm58N.m3
K37Y0.55KW0.55kw105rpm50N.m3.3
K37Y0.55KW0.55kw114rpm46N.m3.5
K37Y0.55KW0.55kw132rpm40N.m4
K37Y0.55KW0.55kw155rpm34N.m4.7
K37Y0.55KW0.55kw173rpm30N.m5.1
K37Y0.55KW0.55kw203rpm26N.m5.8
K37Y0.55KW0.55kw217rpm24N.m6
K37Y0.55KW0.55kw257rpm20N.m6.9
K37Y0.55KW0.55kw347rpm15N.m8.3

KA38減速機配0.75KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y0.75KW0.75KW32rpm225N.m0.9
K37Y0.75KW0.75KW37rpm193N.m1.05
K37Y0.75KW0.75KW40rpm181N.m1.1
K37Y0.75KW0.75KW47rpm152N.m1.3
K37Y0.75KW0.75KW49rpm146N.m1.35
K37Y0.75KW0.75KW56rpm127N.m1.6
K37Y0.75KW0.75KW60rpm119N.m1.65
K37Y0.75KW0.75KW70rpm102N.m1.8
K37Y0.75KW0.75KW82rpm87N.m2.1
K37Y0.75KW0.75KW92rpm78N.m2.2
K37Y0.75KW0.75KW108rpm66N.m2.5
K37Y0.75KW0.75KW116rpm62N.m2.6
K37Y0.75KW0.75KW134rpm53N.m3
K37Y0.75KW0.75KW158rpm45N.m3.5
K37Y0.75KW0.75KW177rpm40N.m3.8
K37Y0.75KW0.75KW207rpm34N.m4.4
K37Y0.75KW0.75KW221rpm32N.m4.5
K37Y0.75KW0.75KW263rpm27N.m5.2
K37Y0.75KW0.75KW354rpm20N.m6.2

KA38減速機配1.1KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y1.1KW1.1KW47rpm220N.m0.9
K37Y1.1KW1.1KW56rpm186N.m1.05
K37Y1.1KW1.1KW60rpm174N.m1.1
K37Y1.1KW1.1KW70rpm150N.m1.25
K37Y1.1KW1.1KW82rpm128N.m1.4
K37Y1.1KW1.1KW92rpm114N.m1.55
K37Y1.1KW1.1KW108rpm98N.m1.7
K37Y1.1KW1.1KW116rpm90N.m1.75
K37Y1.1KW1.1KW134rpm78N.m2
K37Y1.1KW1.1KW158rpm66N.m2.4
K37Y1.1KW1.1KW177rpm59N.m2.6
K37Y1.1KW1.1KW207rpm51N.m3
K37Y1.1KW1.1KW221rpm47N.m3.1
K37Y1.1KW1.1KW263rpm40N.m3.5
K37Y1.1KW1.1KW354rpm30N.m4.2

KA38減速機配1.5KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y1.5KW1.5KW60rpm235N.m0.8
K37Y1.5KW1.5KW69rpm205N.m0.9
K37Y1.5KW1.5KW82rpm176N.m1.05
K37Y1.5KW1.5KW91rpm157N.m1.1
K37Y1.5KW1.5KW107rpm134N.m1.25
K37Y1.5KW1.5KW115rpm124N.m1.3
K37Y1.5KW1.5KW133rpm107N.m1.5
K37Y1.5KW1.5KW157rpm91N.m1.75
K37Y1.5KW1.5KW176rpm81N.m1.9
K37Y1.5KW1.5KW206rpm70N.m2.2
K37Y1.5KW1.5KW220rpm65N.m2.2
K37Y1.5KW1.5KW261rpm55N.m2.6
K37Y1.5KW1.5KW352rpm41N.m3.1

KA38減速機配2.2KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y2.2KW2.2KW107rpm196N.m0.85
K37Y2.2KW2.2KW133rpm157N.m1
K37Y2.2KW2.2KW157rpm134N.m1.2
K37Y2.2KW2.2KW176rpm119N.m1.3
K37Y2.2KW2.2KW206rpm102N.m1.45
K37Y2.2KW2.2KW220rpm96N.m1.5
K37Y2.2KW2.2KW261rpm80N.m1.75
K37Y2.2KW2.2KW352rpm60N.m2.1

KA38減速機配3KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y3KW3KW157rpm182N.m0.9
K37Y3KW3KW176rpm163N.m0.95
K37Y3KW3KW206rpm139N.m1.1
K37Y3KW3KW220rpm130N.m1.1
K37Y3KW3KW261rpm110N.m1.3
K37Y3KW3KW352rpm81N.m1.55

KA38減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：K38減速機

關鍵詞:通孔減速機型一體式_空心軸減速機配電機_直角中空減速機_中孔輸出減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器

KA系列齒輪減速馬達型號：KA38減速機,KA48減速機,KA58減速機,KA68減速機,KA78減速機,KA88減速機,KA98減速機,KA108減速機,KA128減速機,KA158減速機,KA168減速機,KA188減速機

KA系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求



標簽:   KA38減速電機 KA37斜齒輪錐齒輪減速機 KA37減速機功率 KA37減速機基座尺寸 KA37減速機模型 KA37減速機型號參數

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
KA38減速電機模型基座尺寸下載 點擊下載
KA38減速電機型號參數下載 點擊下載
