KF78減速電機詳細信息

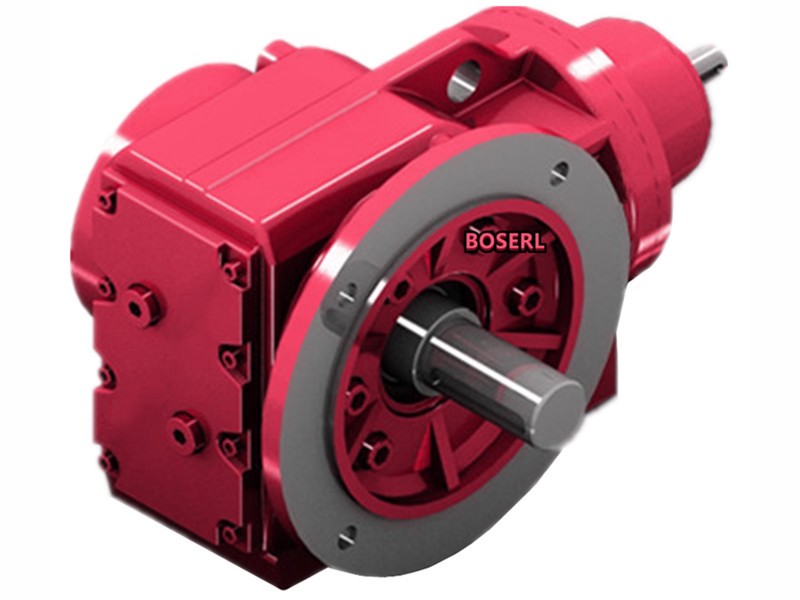

KF78減速電機
KF78減速電機選型計算：齒輪減速馬達
槳式攪拌機參數：攪動飼料0.52噸，每分鐘攪動118圈，攪拌槳輪直徑87
電機轉數1400÷118圈（輸出轉速）=減速比11.86
攪拌0.52噸=5096N
5096N×0.0435攪拌槳輪半徑=220.5×2攪拌水狀物料扭矩放大兩倍=441N.m
441N.m÷11.86減速比=37.18N.m電機扭矩
37.18N.m電機扭矩換算成功率5.9KW以上
對應的KF78減速機選型參數：
型號：KF78-BEJ7.5KW
減速比：12.36
輸出轉數：119轉每分鐘
輸出扭矩：600N.m
安全系數：1.65
KF78減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機減速機
KF78斜齒輪傘齒輪減速機型號：
KF78減速電機型號參數：直角減速機
KF78減速機配0.37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K77Y0.37KW | 0.37KW | 7.2rpm | 490N.m | 3 |
| K77Y0.37KW | 0.37KW | 7.7rpm | 455N.m | 3.2 |
| K77Y0.37KW | 0.37KW | 9rpm | 390N.m | 3.9 |
KF78減速機配0.55KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K77Y0.55KW | 0.55KW | 9rpm | 585N.m | 2.6 |
| K77Y0.55KW | 0.55KW | 10rpm | 510N.m | 3 |
| K77Y0.55KW | 0.55KW | 11rpm | 485N.m | 3.2 |
| K77Y0.55KW | 0.55KW | 12rpm | 430N.m | 3.6 |
| K77Y0.55KW | 0.55KW | 14rpm | 365N.m | 4.2 |
KF78減速機配0.75KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K77Y0.75KW | 0.75KW | 9.2rpm | 780N.m | 2 |
| K77Y0.75KW | 0.75KW | 10rpm | 685N.m | 2.3 |
| K77Y0.75KW | 0.75KW | 11rpm | 650N.m | 2.4 |
| K77Y0.75KW | 0.75KW | 12rpm | 575N.m | 2.7 |
| K77Y0.75KW | 0.75KW | 15rpm | 490N.m | 3.1 |
KF78減速機配1.1KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K77Y1.1KW | 1.1KW | 10rpm | 1000N.m | 1.55 |
| K77Y1.1KW | 1.1KW | 11rpm | 950N.m | 1.6 |
| K77Y1.1KW | 1.1KW | 12rpm | 840N.m | 1.85 |
| K77Y1.1KW | 1.1KW | 15rpm | 720N.m | 2.1 |
| K77Y1.1KW | 1.1KW | 16rpm | 660N.m | 2.3 |
| K77Y1.1KW | 1.1KW | 18rpm | 580N.m | 2.7 |
| K77Y1.1KW | 1.1KW | 19rpm | 550N.m | 2.8 |
KF78減速機配1.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K77Y1.5KW | 1.5KW | 10rpm | 1380N.m | 1.1 |
| K77Y1.5KW | 1.5KW | 11rpm | 1310N.m | 1.2 |
| K77Y1.5KW | 1.5KW | 12rpm | 1160N.m | 1.35 |
| K77Y1.5KW | 1.5KW | 15rpm | 990N.m | 1.55 |
| K77Y1.5KW | 1.5KW | 16rpm | 910N.m | 1.7 |
| K77Y1.5KW | 1.5KW | 18rpm | 795N.m | 1.95 |
| K77Y1.5KW | 1.5KW | 19rpm | 755N.m | 2 |
| K77Y1.5KW | 1.5KW | 22rpm | 660N.m | 2.3 |
| K77Y1.5KW | 1.5KW | 24rpm | 595N.m | 2.6 |
| K77Y1.5KW | 1.5KW | 27rpm | 520N.m | 3 |
| K77Y1.5KW | 1.5KW | 31rpm | 460N.m | 3.4 |
| K77Y1.5KW | 1.5KW | 35rpm | 405N.m | 3.8 |
KF78減速機配2.2KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K77Y2.2KW | 2.2KW | 12rpm | 1700N.m | 0.9 |
| K77Y2.2KW | 2.2KW | 14rpm | 1450N.m | 1.05 |
| K77Y2.2KW | 2.2KW | 16rpm | 1330N.m | 1.15 |
| K77Y2.2KW | 2.2KW | 18rpm | 1170N.m | 1.3 |
| K77Y2.2KW | 2.2KW | 19rpm | 1110N.m | 1.4 |
| K77Y2.2KW | 2.2KW | 22rpm | 970N.m | 1.6 |
| K77Y2.2KW | 2.2KW | 24rpm | 870N.m | 1.75 |
| K77Y2.2KW | 2.2KW | 27rpm | 765N.m | 2 |
| K77Y2.2KW | 2.2KW | 31rpm | 675N.m | 2.3 |
| K77Y2.2KW | 2.2KW | 35rpm | 600N.m | 2.6 |
| K77Y2.2KW | 2.2KW | 40rpm | 525N.m | 2.9 |
| K77Y2.2KW | 2.2KW | 45rpm | 460N.m | 3.3 |
| K77Y2.2KW | 2.2KW | 48rpm | 435N.m | 3.5 |
| K77Y2.2KW | 2.2KW | 55rpm | 380N.m | 4 |
KF78減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K77Y3KW | 3KW | 16rpm | 1820N.m | 0.85 |
| K77Y3KW | 3KW | 18rpm | 1590N.m | 0.95 |
| K77Y3KW | 3KW | 19rpm | 1510N.m | 1 |
| K77Y3KW | 3KW | 22rpm | 1320N.m | 1.15 |
| K77Y3KW | 3KW | 24rpm | 1190N.m | 1.3 |
| K77Y3KW | 3KW | 27rpm | 1040N.m | 1.5 |
| K77Y3KW | 3KW | 31rpm | 920N.m | 1.7 |
| K77Y3KW | 3KW | 35rpm | 810N.m | 1.9 |
| K77Y3KW | 3KW | 40rpm | 720N.m | 2.2 |
| K77Y3KW | 3KW | 45rpm | 630N.m | 2.4 |
KF78減速機配4KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K77Y4KW | 4KW | 22rpm | 1720N.m | 0.9 |
| K77Y4KW | 4KW | 25rpm | 1550N.m | 1 |
| K77Y4KW | 4KW | 28rpm | 1360N.m | 1.15 |
| K77Y4KW | 4KW | 32rpm | 1200N.m | 1.3 |
| K77Y4KW | 4KW | 36rpm | 1070N.m | 1.45 |
| K77Y4KW | 4KW | 37rpm | 1020N.m | 1.45 |
| K77Y4KW | 4KW | 41rpm | 940N.m | 1.65 |
| K77Y4KW | 4KW | 46rpm | 820N.m | 1.9 |
| K77Y4KW | 4KW | 49rpm | 780N.m | 2 |
| K77Y4KW | 4KW | 56rpm | 680N.m | 2.3 |
| K77Y4KW | 4KW | 62rpm | 615N.m | 2.5 |
| K77Y4KW | 4KW | 71rpm | 540N.m | 2.8 |
KF78減速機配5.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K77Y5.5KW | 5.5KW | 32rpm | 1640N.m | 0.95 |
| K77Y5.5KW | 5.5KW | 36rpm | 1450N.m | 1.05 |
| K77Y5.5KW | 5.5KW | 47rpm | 1120N.m | 1.4 |
| K77Y5.5KW | 5.5KW | 49rpm | 1060N.m | 1.45 |
| K77Y5.5KW | 5.5KW | 56rpm | 930N.m | 1.65 |
| K77Y5.5KW | 5.5KW | 63rpm | 830N.m | 1.85 |
| K77Y5.5KW | 5.5KW | 71rpm | 735N.m | 2 |
| K77Y5.5KW | 5.5KW | 81rpm | 645N.m | 2.2 |
| K77Y5.5KW | 5.5KW | 91rpm | 575N.m | 2.4 |
| K77Y5.5KW | 5.5KW | 107rpm | 490N.m | 2.7 |
| K77Y5.5KW | 5.5KW | 117rpm | 445N.m | 2.2 |
| K77Y5.5KW | 5.5KW | 133rpm | 390N.m | 2.5 |
KF78減速機配7.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K77Y7.5KW | 7.5KW | 47rpm | 1530N.m | 1 |
| K77Y7.5KW | 7.5KW | 49rpm | 1450N.m | 1.05 |
| K77Y7.5KW | 7.5KW | 56rpm | 1260N.m | 1.2 |
| K77Y7.5KW | 7.5KW | 63rpm | 1140N.m | 1.35 |
| K77Y7.5KW | 7.5KW | 71rpm | 1000N.m | 1.5 |
| K77Y7.5KW | 7.5KW | 81rpm | 880N.m | 1.65 |
| K77Y7.5KW | 7.5KW | 91rpm | 780N.m | 1.8 |
| K77Y7.5KW | 7.5KW | 107rpm | 670N.m | 2 |
| K77Y7.5KW | 7.5KW | 117rpm | 610N.m | 1.65 |
| K77Y7.5KW | 7.5KW | 133rpm | 535N.m | 1.85 |
| K77Y7.5KW | 7.5KW | 151rpm | 470N.m | 2 |
| K77Y7.5KW | 7.5KW | 170rpm | 420N.m | 2.1 |
| K77Y7.5KW | 7.5KW | 200rpm | 355N.m | 2.3 |
KF78減速機配11KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K77Y11KW | 11KW | 63rpm | 1660N.m | 0.95 |
| K77Y11KW | 11KW | 72rpm | 1450N.m | 1.05 |
| K77Y11KW | 11KW | 82rpm | 1280N.m | 1.15 |
| K77Y11KW | 11KW | 92rpm | 1130N.m | 1.25 |
| K77Y11KW | 11KW | 108rpm | 970N.m | 1.4 |
| K77Y11KW | 11KW | 118rpm | 880N.m | 1.15 |
| K77Y11KW | 11KW | 135rpm | 775N.m | 1.25 |
| K77Y11KW | 11KW | 153rpm | 685N.m | 1.35 |
| K77Y11KW | 11KW | 172rpm | 610N.m | 1.45 |
| K77Y11KW | 11KW | 202rpm | 520N.m | 1.55 |
KF78減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K78減速機
關鍵詞:交流減速機配電機一體式_大扭力減速機_伺服電機減速機_伺服減速機_伺服電機減速器_伺服減速器_伺服電機減速機一體機_伺服減速機一體式_大扭力減速器_GKF系列減速機_KF系列減速機_伺服電機減速機一體式_伺服電機減速機一體化_KF系列減速器
KF系列齒輪減速馬達型號：KF38減速機,KF48減速機,KF58減速機,KF68減速機,KF78減速機,KF88減速機,KF98減速機,KF108減速機,KF128減速機,KF158減速機,KF167減速機,KF187減速機
KF系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
