RF78減速機詳細信息

prevnext

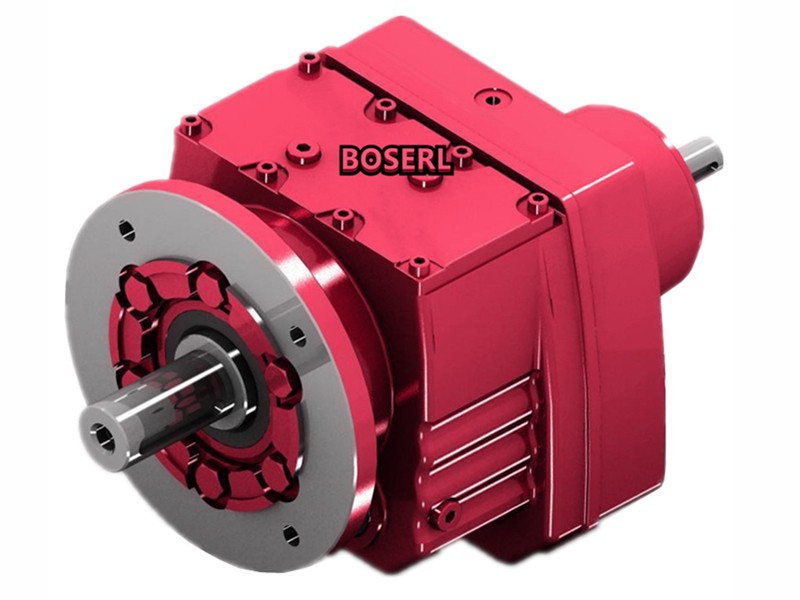

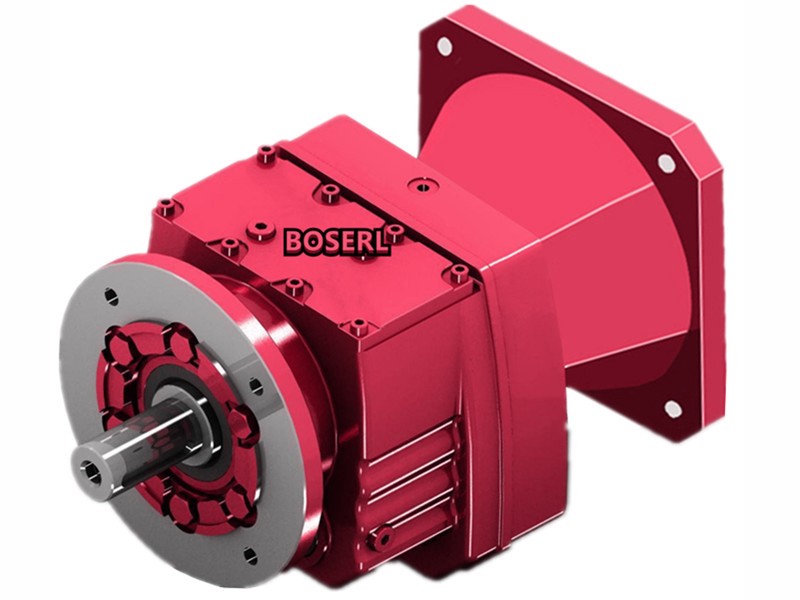

RF78減速機

訂購熱線：13360667204
  1. 詳細信息

RF78減速機傳動比計算：齒輪減速馬達

傳送帶參數：齒輪直徑170，傳送3.8噸，傳送一分鐘21米

21米÷（0.17齒輪直徑X3.14）=39.34轉每分鐘

3.8噸換算成N=38000N

38000×0.08齒輪半徑×0.06摩擦系數=182.4N.m

通常確保萬無一失，我們會把輸出扭矩放大兩倍182.4×2=364.8N.m

電機轉數1400÷輸出轉數39.34=35.59比

364.8N.m輸出扭矩÷35.59比=10.25N.m電機扭矩

10.25N.m電機扭矩換算成功率1.63KW左右

對應的RF78減速機選型參數：

型號：RF78-BEJ2.2KW

減速比：36.83

輸出轉數：39轉每分鐘

輸出扭矩：540N.m

安全系數：1.5

RF78減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）RF系列減速機


RF78立式硬齒面斜齒輪減速機型號：


RF77系列減速機參數大全：同軸斜齒輪減速電機

RF77減速機配0.18KW電機參數

型號功率轉數扭矩安全系數
RF77-Y0.18KW0.18KW6.8rpm250N.m3.2
RF77-Y0.18KW0.18KW7.9rpm215N.m3.8
RF77-Y0.18KW0.18KW9.1rpm190N.m4.3
RF77-Y0.18KW0.18KW9.5rpm180N.m4.6

RF77減速機配0.25KW電機參數

型號功率轉數扭矩安全系數
RF77-Y0.25KW0.25KW6.7rpm355N.m2.3
RF77-Y0.25KW0.25KW7.8rpm305N.m2.7
RF77-Y0.25KW0.25KW8.9rpm265N.m3.1
RF77-Y0.25KW0.25KW9.4rpm250N.m3.2
RF77-Y0.25KW0.25KW11rpm220N.m3.7

RF77減速機配0.37KW電機參數

型號功率轉數扭矩安全系數
RF77-Y0.37KW0.37KW7.1rpm495N.m1.65
RF77-Y0.37KW0.37KW8.3rpm425N.m1.90
RF77-Y0.37KW0.37KW9.5rpm370N.m2.20
RF77-Y0.37KW0.37KW10rpm350N.m2.30
RF77-Y0.37KW0.37KW11rpm310N.m2.60
RF77-Y0.37KW0.37KW13rpm260N.m3.10
RF77-Y0.37KW0.37KW15rpm235N.m3.40

RF77減速機配0.55KW電機參數

型號功率轉數扭矩安全系數
RF77-Y0.55KW0.55KW8.30rpm630N.m1.30
RF77-Y0.55KW0.55KW9.50rpm550N.m1.50
RF77-Y0.55KW0.55KW10.0rpm525N.m1.55
RF77-Y0.55KW0.55KW11.0rpm460N.m1.75
RF77-Y0.55KW0.55KW13.0rpm390N.m2.10
RF77-Y0.55KW0.55KW15.0rpm350N.m2.30
RF77-Y0.55KW0.55KW17.0rpm310N.m2.60
RF77-Y0.55KW0.55KW18.0rpm290N.m2.80
RF77-Y0.55KW0.55KW21.0rpm250N.m3.30

RF77減速機配0.75KW電機參數

型號功率轉數扭矩安全系數
RF77-Y0.75KW0.75KW8.60rpm830N.m1.00
RF77-Y0.75KW0.75KW9.80rpm725N.m1.15
RF77-Y0.75KW0.75KW10.0rpm690N.m1.20
RF77-Y0.75KW0.75KW12.0rpm605N.m1.35
RF77-Y0.75KW0.75KW14.0rpm510N.m1.60
RF77-Y0.75KW0.75KW15.0rpm460N.m1.75
RF77-Y0.75KW0.75KW18.0rpm405N.m2.00
RF77-Y0.75KW0.75KW19.0rpm385N.m2.10
RF77-Y0.75KW0.75KW22.0rpm325N.m2.50
RF77-Y0.75KW0.75KW25.0rpm285N.m2.80
RF77-Y0.75KW0.75KW28.0rpm255N.m3.20
RF77-Y0.75KW0.75KW31.0rpm225N.m3.60
RF77-Y0.75KW0.75KW33.0rpm215N.m3.80

RF77減速機配1.1KW電機參數

型號功率轉數扭矩安全系數
RF77-Y1.1KW1.1KW12.0rpm890N.m0.90
RF77-Y1.1KW1.1KW14.0rpm760N.m1.10
RF77-Y1.1KW1.1KW15.0rpm685N.m1.20
RF77-Y1.1KW1.1KW17.0rpm605N.m1.35
RF77-Y1.1KW1.1KW18.0rpm570N.m1.45
RF77-Y1.1KW1.1KW22.0rpm485N.m1.70
RF77-Y1.1KW1.1KW25.0rpm425N.m1.90
RF77-Y1.1KW1.1KW27.0rpm385N.m2.10
RF77-Y1.1KW1.1KW31.0rpm335N.m2.40
RF77-Y1.1KW1.1KW33.0rpm320N.m2.60
RF77-Y1.1KW1.1KW39.0rpm270N.m3.00
RF77-Y1.1KW1.1KW42.0rpm245N.m3.30

RF77減速機配1.5KW電機參數

型號功率轉數扭矩安全系數
RF77-Y1.5KW1.5KW15rpm930N.m0.90
RF77-Y1.5KW1.5KW17rpm810N.m1.00
RF77-Y1.5KW1.5KW19rpm770N.m1.05
RF77-Y1.5KW1.5KW22rpm655N.m1.25
RF77-Y1.5KW1.5KW25rpm575N.m1.40
RF77-Y1.5KW1.5KW27rpm520N.m1.55
RF77-Y1.5KW1.5KW31rpm455N.m1.80
RF77-Y1.5KW1.5KW33rpm430N.m1.90
RF77-Y1.5KW1.5KW39rpm365N.m2.20
RF77-Y1.5KW1.5KW43rpm335N.m2.40
RF77-Y1.5KW1.5KW49rpm290N.m2.80
RF77-Y1.5KW1.5KW57rpm250N.m3.10
RF77-Y1.5KW1.5KW61rpm230N.m3.50
RF77-Y1.5KW1.5KW67rpm210N.m3.80
RF77-Y1.5KW1.5KW76rpm188N.m4.10

RF77減速機配2.2KW電機參數

型號功率轉數扭矩安全系數
RF77-Y2.2KW2.2KW22rpm960N.m0.85
RF77-Y2.2KW2.2KW25rpm850N.m0.95
RF77-Y2.2KW2.2KW27rpm765N.m1.05
RF77-Y2.2KW2.2KW31rpm675N.m1.2
RF77-Y2.2KW2.2KW33rpm635N.m1.3
RF77-Y2.2KW2.2KW39rpm540N.m1.5
RF77-Y2.2KW2.2KW43rpm490N.m1.65
RF77-Y2.2KW2.2KW49rpm425N.m1.9
RF77-Y2.2KW2.2KW56rpm370N.m2.1
RF77-Y2.2KW2.2KW61rpm340N.m2.4
RF77-Y2.2KW2.2KW66rpm315N.m2.6
RF77-Y2.2KW2.2KW76rpm275N.m2.8
RF77-Y2.2KW2.2KW80rpm260N.m3
RF77-Y2.2KW2.2KW91rpm225N.m3.2
RF77-Y2.2KW2.2KW101rpm205N.m3.5

RF77減速機配3KW電機參數

型號功率轉數扭矩安全系數
RF77-Y3KW3KW32rpm900N.m0.90
RF77-Y3KW3KW34rpm850N.m0.95
RF77-Y3KW3KW40rpm725N.m1.15
RF77-Y3KW3KW43rpm655N.m1.25
RF77-Y3KW3KW50rpm570N.m1.45
RF77-Y3KW3KW58rpm495N.m1.55
RF77-Y3KW3KW62rpm460N.m1.80
RF77-Y3KW3KW68rpm420N.m1.95
RF77-Y3KW3KW77rpm370N.m2.10
RF77-Y3KW3KW82rpm350N.m2.20
RF77-Y3KW3KW93rpm305N.m2.40
RF77-Y3KW3KW104rpm275N.m2.60
RF77-Y3KW3KW118rpm240N.m2.80
RF77-Y3KW3KW134rpm210N.m3.10
RF77-Y3KW3KW151rpm190N.m3.30
RF77-Y3KW3KW169rpm169N.m3.70
RF77-Y3KW3KW188rpm152N.m4.00
RF77-Y3KW3KW214rpm134N.m4.30

RF77減速機配4KW電機參數

型號功率轉數扭矩安全系數
RF77-Y4KW4KW40rpm960N.m0.85
RF77-Y4KW4KW44rpm870N.m0.95
RF77-Y4KW4KW50rpm755N.m1.1
RF77-Y4KW4KW58rpm660N.m1.2
RF77-Y4KW4KW62rpm610N.m1.35
RF77-Y4KW4KW68rpm560N.m1.45
RF77-Y4KW4KW78rpm490N.m1.6
RF77-Y4KW4KW82rpm465N.m1.65
RF77-Y4KW4KW94rpm405N.m1.80
RF77-Y4KW4KW104rpm365N.m1.95
RF77-Y4KW4KW118rpm320N.m2.10
R77F-Y4KW4KW134rpm280N.m2.30
RF77-Y4KW4KW151rpm250N.m2.50
RF77-Y4KW4KW170rpm220N.m2.80
RF77-Y4KW4KW189rpm200N.m3.00
RF77-Y4KW4KW215rpm178N.m3.30
RF77-Y4KW4KW244rpm157N.m3.40
RF77-Y4KW4KW275rpm139N.m3.70

RF77減速機配5.5KW電機參數

型號功率轉數扭矩安全系數
RF77-Y5.5KW5.5KW77rpm675N.m1.15
RF77-Y5.5KW5.5KW82rpm640N.m1.20
RF77-Y5.5KW5.5KW93rpm560N.m1.30
RF77-Y5.5KW5.5KW104rpm505N.m1.40
RF77-Y5.5KW5.5KW118rpm440N.m1.55
RF77-Y5.5KW5.5KW134rpm390N.m1.70
RF77-Y5.5KW5.5KW151rpm345N.m1.80
RF77-Y5.5KW5.5KW169rpm310N.m2.00
RF77-Y5.5KW5.5KW188rpm275N.m2.20
RF77-Y5.5KW5.5KW214rpm245N.m2.40
RF77-Y5.5KW5.5KW243rpm215N.m2.50
RF77-Y5.5KW5.5KW274rpm192N.m2.70

RF77減速機配7.5KW電機參數

型號功率轉數扭矩安全系數
RF77-Y7.5KW7.5KW78rpm910N.m0.85
RF77-Y7.5KW7.5KW82rpm860N.m0.90
RF77-Y7.5KW7.5KW94rpm755N.m0.95
RF77-Y7.5KW7.5KW105rpm680N.m1.05
RF77-Y7.5KW7.5KW119rpm600N.m1.15
RF77-Y7.5KW7.5KW135rpm525N.m1.25
RF77-Y7.5KW7.5KW152rpm465N.m1.35
RF77-Y7.5KW7.5KW171rpm415N.m1.50
RF77-Y7.5KW7.5KW190rpm375N.m1.60
RF77-Y7.5KW7.5KW216rpm330N.m1.75
RF77-Y7.5KW7.5KW245rpm290N.m1.85
RF77-Y7.5KW7.5KW277rpm255N.m1.95

RF77減速機配11KW電機參數

型號功率轉數扭矩安全系數
RF77-Y11KW11KW136rpm770N.m0.85
RF77-Y11KW11KW153rpm685N.m0.90
RF77-Y11KW11KW191rpm550N.m1.10
RF77-Y11KW11KW217rpm480N.m1.20
RF77-Y11KW11KW246rpm425N.m1.25
RF77-Y11KW11KW278rpm375N.m1.35

RF78減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：R78減速機

關鍵詞:GRF系列減速機立式一體式_直線輸出減速機配電機_RF系列減速器_直連電機減速機_直連減速機_直連減速器_直聯減速機_RF系列減速機_RF型減速機_RF齒輪減速馬達

RF系列減速機型號：RF18減速機,RF28減速機,RF38減速機,RF48減速機,RF58減速機,RF68減速機,RF78減速機,RF88減速機,RF98減速機,RF108減速機,RF138減速機,RF148減速機,RF168減速機

RF系列斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


標簽:  RF78減速機 RF77立式硬齒面斜齒輪減速機 RF77系列減速機 RF77減速機傳動比 RF77減速機選型參數 RF77減速機CAD三維圖

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
RF78減速機CAD三維圖紙下載 點擊下載
RF78減速機選型參數下載 點擊下載
